Stepper Motor Mount Nema 23
Internal diameter selection
Description:

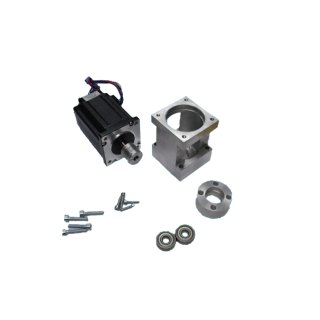

Stepper Motor Mount Nema 23
fits all stepper motors Nema 23 from our range (e.g. 1,85 Nm or 3,0 Nm) and our shaft connectors, can be used for trapezoidal screw threads straight as well as for ball screws.
Because of large opening the assembling can be simply done.
Suitable for spindle with internal diameter from 10 to 16 mm (trapezoidal screw threads straight
TR 10x2 to TR 16x4 or ball screw 16x5).
The internal diameter ist the the same processed outer diameter of the spindle.
Mount dimensions: 60 x 60 x 80 mm.
Scope of delivery:
1 stepper motor mount
2 ball bearings at choice
4 cylinder screws M4 x 16
4 cylinder screws M5 x 25
Ball bearings range:
Internal diameter ball bearing comment
6 mm 626 with 2 groove ball bearings
8 mm 628 with 2 groove ball bearings
9 mm 609 with 2 groove ball bearings
10 mm 6000 with 2 groove ball bearings
10 mm 7200 with 2 angular ball bearings
