Mechanical Basic Kit Complete
Description:

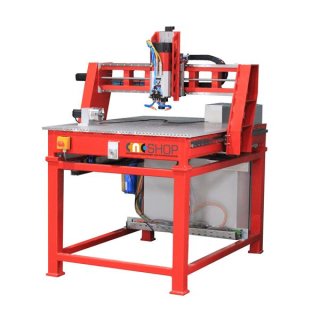

CNC Portal Milling Machine SM 1000 mechanical Kit
Clamping surface (X Y) 1300 x 750 mm
Travel (X Y Z) 1090 mm x 610 mm x 185 mm
Positioning accuracy depending from the used spindle type, when trapezoidal Screw thread straight ±0.02/300mm
Programmable resolution 0.0025 mm
Repeat accuracy 0,02 to 0,003 mm
Backlash adjustable per software at 0,000 mm
Travel speed rapid traverse with trapezoidal screws thread up to 2500 mm/m
with ball screws up to 6000 mm/min
Spindles 3x ball screw 16x5 or
3x trapezoidal screw thread straight TR 16x4
(acc. To additional package)
Guide rails per 2 profile rail guides for all 3 Axes
Passage height 185 mm
Milling motor mount Ø 43 mm (optional 80 mm or on request
Other diameter possible)
Overall mass incl. motors (LxBxH) 1500 mm x 1000 mm x 900 mm
Optional T-slot plate 20 mm thick, T-slot 8 mm wide for easy installation
And fastening of the work piece
Alternatively fastening of a PE500-plate for
Work piece clamping is possible
Drive recommended 3 stepper motors with holding torque 3,0 Nm
The milling machine is delivered in Kit.
The following additional products can be also delivered:
Set guide carriages and profile rails (Item no. 51038)
T-slot plate (Item no. 51039)
Set ball screws (Item no. 51041)
Set trapezoidal screws thread straight (Item no. 51042)
Electronic control package (Item no. )
Scope of delivery:
- Complete mechanical kit incl. all extruded aluminium profiles, all necessary connecting- and fastening elements.
- All elements are already machined
- All components were CNC- milled, and drilled.
- The machine is delivered not being assembled
- Detailed assembling plan in german on CD will be also delivered
Not included in scope of delivery:
- Profile rails and guide carriages
- Trapezoidal screws thread straight and ball screws
- Electronic components (like stepper motors, driver controller)
- T-slot plate
Because of high demand, the delivery time takes about 6 weeks from order receipt and clearance of all details.
